SKU: SM26006

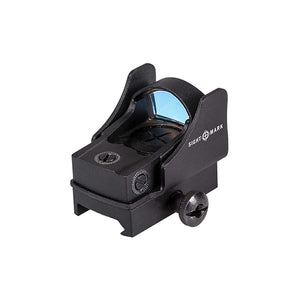

Sightmark Mini Shot ProSpec Reflex Sight

The Mini Shot Pro Spec Reflex Sight is an improved version of the most compact, lightweight sight in the Sightmark® reflex sight line. Designed for shotguns, rifles, and pistols, the Mini Shot Pro Spec™ with red reticle is equipped with an advanced optical system with dual-pane glass, a scratch-resistant lens, and a battery life up to 10,000 hours. The device also includes windage and elevation click adjustments to dial in quickly and an external battery compartment to maintain zero when replacing batteries. Small but powerful, the Mini Shot Pro Spec™ maintains peripheral vision and depth perception for quick target acquisition. The device also features a side-mounted, digital on/off switch for easy activation. Protected by a protective hood, the unit comes standard with a removable low-profile weaver mount and lower 1/3 co-witness riser mount. Additional pistol mounts are sold separately.

Reticle, Type 5 moa dot
Reticle, Color red
Reticle, Illuminated yes
Reticle Brightness Setting 1-5 and off
Finish/Color matte black
Magnification 1 x
Diameter, Objective Lens 23x16 mm
Eye Relief unlimited mm
Field of View 15.7 m @100m
Field of View 51.5 ft @100yd
Parallax Setting 10yds to infinity yds
MOA Adjustment 1 1 click = MOA
Windage Range of Adjustment 150 MOA
Elevation Range of Adjustment 205 MOA
Maximum Recoil 1,000 G's
Battery Type CR1632
Battery Life 20-10,000 hours
Battery Voltage, V 3 V
Sunshade No
Nitrogen Purged No
Shockproof Yes
Fog Proof No
Focal Plane NA
Waterproof Rating IPX4 - weatherproof
Body Material aluminum
Lens Coating AR Red
Mount Type weaver/picatinny
Operating Temperature 0 to 120 / -17 to 49 °F/°C
Length 1.9 / 48.6 in / mm, w/ protective shield
Width 1.4 / 34.8 in / mm, w/ protective shield
Height 1.6 / 40 in / mm, w/ protective shield
Height 2.2 / 56.9 in / mm, w/ protective shield and riser mount
Weight 3.3 w/ protective shield, and low profile mount
Weight 4 w/ protective shield and riser mount

  • No Markings
